GLI Cobra Repeater Kit
Repeats a live L1/L2 GPS signal inside any ground vehicle or aircraft- No doubt that GPS is 100% operational! Engineered for field installation. No retrofit OEF / OIF combat proven core technology Enables Jump Master’s GPS Reduces time from dismount to breech on target Easily installed by soldier or maintenance personnel Waterproof & EMI sealed – Built for extreme mission environments Powered by 5590 batteries, or 12/28V vehicle power – Flexible power options LEDs on hardware – Easy to recognize that system is operational Ruggedized carrying case – Ideal for operational environment and field installation Selectable power level, allowing the user to control the area of signal coverage for Airborne and ground platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B
GLI Copperhead Repeater Kit
Repeats a live L1/L2 GPS signal inside any ground vehicle – No doubt that GPS is 100% operational! Available as a roll on/roll off or permanent install NVG compatible OEF / OIF combat proven core technology Reduces time from dismount to breech on target Easily installed by soldier or maintenance personnel Waterproof & EMI sealed – Built for extreme mission environments Powered by 5590 batteries, or 12/28V vehicle power Flexible power options LEDs on hardware – Easy to recognize that system is operational Ruggedized carrying case – Ideal for operational environment and field installation Selectable power level, allowing the user to control the area of signal coverage for ground platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B

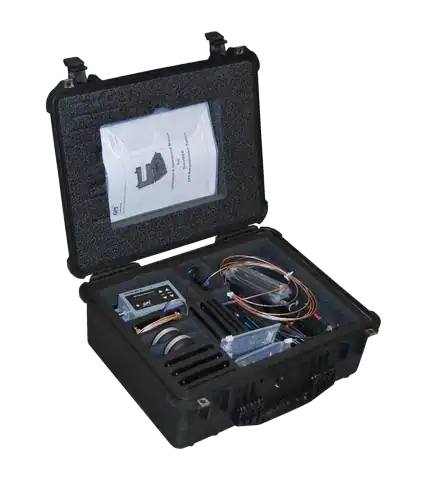

GLI Cottonmouth Repeater Kit
Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B Repeats a live L1/L2 GPS signal inside any HMMWV variant- No doubt that GPS is 100% operational! Available as a roll on/roll off or permanent install NVG compatible OEF / OIF combat proven core technology Reduces time from dismount to breech on target Easily installed by soldier or maintenance personnel Waterproof & EMI sealed – Built for extreme mission environments Powered by 5590 batteries, or 12/28V vehicle power – Flexible power options LEDs on hardware – Easy to recognize that system is operational Ruggedized carrying case – Ideal for operational environment and field installation Selectable power level, allowing the user to control the area of signal coverage for ground platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B
GLI Diamondback Repeater Kit
This equipment has received Safety of Flight Approval from the United States Air Force Air Mobility Command Systems Group. GLI-Diamondback provides GPS (including GPS supporting the Army’s modernization requirements) coverage within the cargo compartment of any small sized military aircraft. This means any handheld military or commercial GPS receivers, precision air drop guidance units and precision airborne receivers acquire satellite signals inside the cargo compartment. Delays in acquiring GPS position are a thing of the past. A GPS receiver will experience no loss in signal coverage as it moves out of an aircraft equipped with GPS Live Inside. Based on technology developed for Boeing C17 Supports options not available in any other repeater Outperforms retransmission systems costing several thousand dollars more. GPS Retransmission technology developed by GPS Source, Inc. is currently utilized by Land Warrior units aboard Stryker, RG-33 and M1151 vehicles. Key Features GPS signal throughout entire cargo bay – No doubt that GPS is 100% operational! Available as a roll on/roll off or permanent install NVG compatible Engineered for easy installation and operation, (including a pictorial user manual) – Missions stay on schedule! Combat Proven Core Technology – Will stand up to rugged mission demands Adjustable active GPS antenna mount – Pilots can choose antenna location Waterproof & EMI Sealed – Built for extreme mission environments Powered by 5590 Batteries, or 12/28V Aircraft/Vehicle Power – Flexible and adaptable to power options available LEDs on hardware – Easy to recognize that system is operational Compartmentalized carrying case – Easy confirmation of required hardware Selectable power level, allowing the user to control the area of signal coverage for all Airborne platforms Built to military specifications: MIL-STD-810G, MIL-STD-461F (CE 102, CE106, RF 102), MIL-DTL-5541, MIL-STD-704F OR MIL-STD-1275B GLI Diamondback Repeater Kit includes GLI Echo II LRU Active Antenna Dual Passive Antenna RF and Power Cabling All Mounting Hardware Multiple Power Options Standard Military Connectors User/Installation Manual Ruggedized Carrying Case 1-year warranty of full system
GLI Viper Repeater Kit
This equipment has received Safety of Flight Approval from the United States Air Force Air Mobility Command Systems Group. GLI-VIPER provides GPS (including GPS supporting the Army’s modernization requirements) coverage within any aircraft. This means any handheld military or commercial GPS receivers, precision air drop guidance units and military free fall receivers acquire satellite signals inside the aircraft. The warfighter will have satellite connectivity and situational awareness prior to exiting an aircraft. A GPS receiver will experience no loss in signal coverage as it moves in or out of any aircraft equipped with GPS Live Inside. Based on technology developed for Boeing C17 Supports options not available in any other repeater Outperforms retransmission systems costing several thousand dollars more. GPS Retransmission technology developed by GPS Source, Inc. is currently utilized by Land Warrior units aboard Stryker, RG-33 and M1151 vehicles.

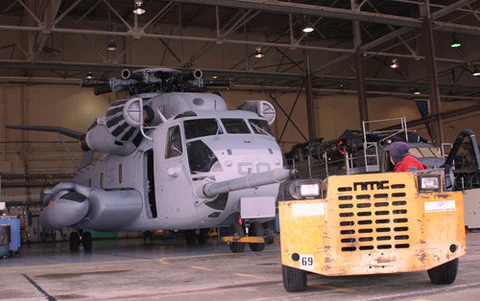

GLI Hangar Repeater Kit
It is all about saving time. If you can save an hour here or there by NOT having to move aircraft out of the hangar, it adds up. The GPS Hangar kit operates by receiving GPS satellite signals with an antenna located outside the hangar and bringing the signal inside or under a covered (GPS denied) space.

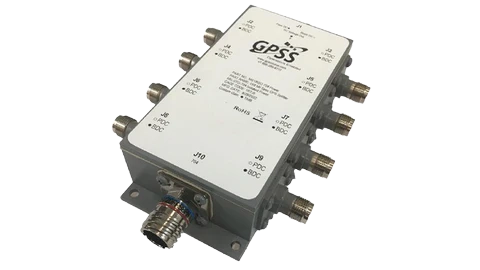

GPS 1×8 Military Qualified Splitter (MS18ISO)
The MS18ISO is a military qualified, one-input eight-output GPS splitter with a MIL-STD-704F compliant isolated power supply. A typical application involves an input from an active GPS roof antenna that is split evenly between eight GPS receivers/devices. The MS18ISO is standard configured to accept external DC input via the included 3-pin D38999 Mil DC power connector. The RF outputs, J2, J3, J4, J5,J6, J7, J8, and J9 are DC blocked standard and feature a 200 ohm DC load to simulate an antenna DC current draw for any receiver connected to that port. Key Features Designed and Manufactured to Military Specifications Passes L1/L2 GPS, Galileo, GLONASS, BeiDou (including M-code) Isolated Power Feature (MIL-STD-704F Compliance) Includes waterproofing, EMI shielding, and hermetic sealing standard Excellent Gain Flatness |L1 – L2| < 3 dB

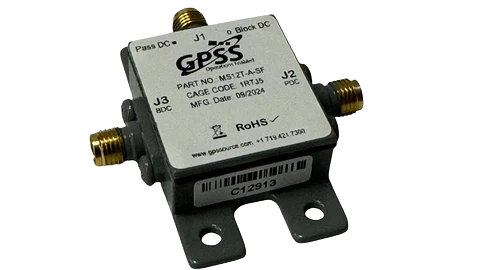

GPS 1×2 Military Tiny Qualified Splitter (MS12T)
A tiny qualified splitter that still delivers full-size performance, the MS12T is perfect for unmanned aerial vehicles (UAVs) or any other applications with size and weight constraints. It is standard configured with EMI Shielding, Waterproofing and is Hermetically Sealed for long-term durability in even the most rugged applications. The MS12T will allow the signal from one GPS antenna to be split between two GPS/GNSS devices. It can be configured to Pass DC from a connected receiver to also power an external GPS Antenna or both outputs can be DC blocked. Key Features The MS12T Tiny GPS Splitter is a one-input, two output GPS device in which the input from an active GPS antenna is split evenly between two receiving GPS units. Ideal for platforms requiring very small, lightweight, and/or low-power equipment (i.e. Unmanned Aerial Vehicle, UAV). The MS12T can be configured to pass DC from an RF output to the antenna input port in order to power an active GPS antenna. The second RF output is DC blocked and features a 200Ω resistive load to ground to simulate an antenna current draw for any receiver connected to that port. Both outputs can be specially configured to be DC Blocked upon request. Passes all GPS and GNSS frequencies Ideal for UAV Applications Small, Lightweight, and Low-power (SWaP) Tiny Package: 1.875in x 1.750in x 0.438 in. (47.0mm x 44.5mm x 11.0mm) RoHS, REACH, WEEE Compliant, CE Certified MIL-STD 810-F Environmental Qualifications

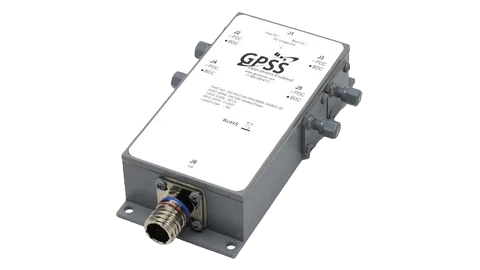

GPS 1×4 Military Qualified Splitter (MS14ISO)
The MS14ISO is a military qualified, one-input four-output GPS splitter with a MIL-STD-704F compliant isolated power supply. A typical application involves an input from an active GPS antenna that is split evenly between four GPS receivers/devices. The MS14ISO is standard configured to accept external DC input via the included 3-pin D38999 Mil DC power connector. The RF outputs, J2, J3, J4, and J5, are DC blocked standard and feature a 200 ohm DC load to simulate an antenna DC current draw for any receiver connected to that port. Key Features Designed and Manufactured to Military Specifications Passes L1/L2 GPS, Galileo, GLONASS, BeiDou (including M-code) Isolated Power Feature (MIL-STD-704F Compliance) Includes waterproofing, EMI shielding, and hermetic sealing standard Excellent Gain Flatness |L1 – L2| < 3dB
