DC Combi Light
Oxley has developed a range of low profile LED lighting to satisfy a variety of requirements for robust, reliable and high performance lighting systems. The DC Combi light is ideal for new build and retro-fit projects. Unique in its design, it delivers white light plus an integrated blackout mode in a choice of colours. In areas with limited space, the low profile design increases the available headroom. LED technology makes this a fit and forget solution, reducing overall costs through extended working life – on average 5x (typically 50,000 hours) including replacement, maintenance, disposal and labour costs. The requirement for surplus space to store replacement and used bulbs is eliminated, whilst the absence of mercury satisfies the environmental issue, providing a non-hazardous solution. The DC Combi light was originally designed for military vehicle lighting and is also suitable for military shelter lighting, temporary work space lighting and naval / marine lighting. Key features Low profile LED light – 16mm Dual mode – main and blackout lighting White light with red, green or blue blackout mode Lightweight – 300g 50,000 hours mean time between failure Available with or without dimming control Sealed low energy light source Benefits Excellent resistance to shock and vibration High reliability and durability No requirement to replace tubes or bulbs Through-life cost savings over fluorescent and incandescent 1/3 of the power requirement for equivalent incandescent lights
Brake / Tail / Reverse Light
Blue Wolf’s Tactical Vehicle Brake/Tail/Reverse Light (BW-A595) provides over 40k hours of on-axle dependability. Our reliable LED brake lights offers running light and braking light in low-light and no-light operations using 8 red (630 nm) LEDs, each having a 10mm 25 degree focusing lens. The outer 2 singular LEDs provide White reverse lights using 2 LEDs with the same lenses. This Brake light was designed for heavy duty Military use and is capable of with standing very harsh conditions. Made out of durable 6061 aluminium house with a thick acrylic protecting lens. The light has individual wires for the Red Brake/Tail/ Reverse Lights. Quick data specs Default finish colour is Black (Custom colours are available) Comes with 12″ Flying leads (connectors are optional) Operating Voltage: 12-32 Vdc Operating current: 100/40 ma (brake/tail) Operating Temp -40 to 122 Degrees F. Many Finish Options (default is black) Mass: 13.0 oz. Material: Anodized Black 6061-T6 Aluminum Hard Mount DOD-160 section 8 compliant MIL-STD-810G compliant Red 630 nm color for brake/tail White 5000K reverse (60ma) IP68 water rated

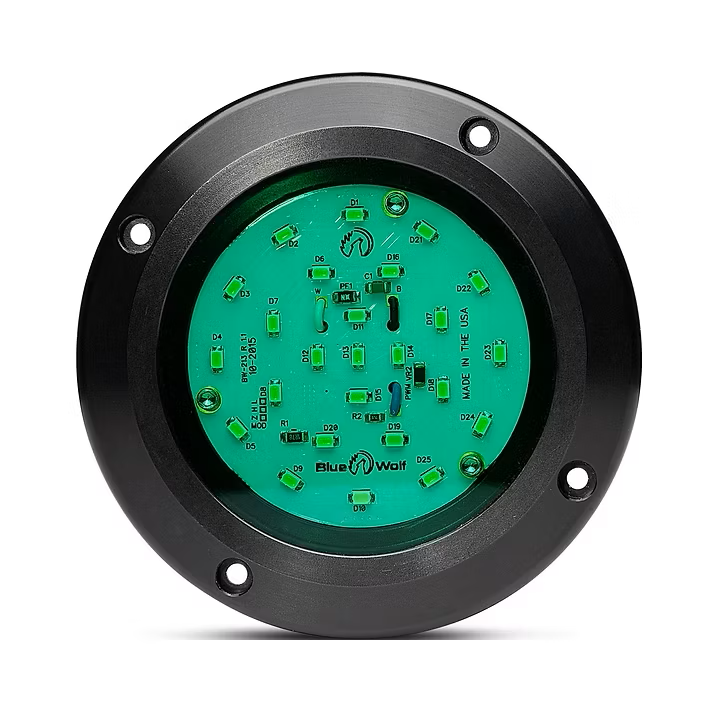

Round Dome Light
Blue Wolf’s NVIS Round Dome light is designed for interior cabin illumination or for cargo bay lighting. It has a very small form factor, less than 3.5 inches in diameter and only 0.490″ thick. This Dome light provides brilliant illumination utilizing 25 low power LEDs. We offer many different colour lighting options for area lighting, plus other standard NVIS/NVG options along with standard white. Manufactured out of solid 6061 aluminium, this NVIS LED dome light looks sleek in design while utilizing minimum mounting space with its thin profile. It’s perfect for any cockpit, boating, ground vehicle, cargo bay area, military land vehicle, or tank that requires MIL-STD-3009 compliant NVIS White LED lighting which allows for easy viewing without “greening out” important indication colours such as “reds” and “yellows”. Blue Wolf offers two versions: The BW-A140 is our standard Round Dome light as described above. The BW-A210 is our more advanced and Heavy Duty version with PWM dimming control The BW-A210, used in many military land vehicles, features over-voltage and transient power protection, and provides constant light output from 18 Vdc to 33 Vdc in case there are any voltage swings within the vehicle power system. Additionally, the BW-A210 if capable of full PWM dimming from 0 to 100% through a third wire positive PWM input signal. This robust light has been heavily tested and easily passed MIL-STD-810G. Quick data specs BW-A140-XXX Operating Voltage: 28 Vdc Typ. Operating current: 120ma NVIS Compliant MIL-STD 3009 Mass: 0.16 lbs Material: Anodized Black 6061-T6 Aluminium DOD-160 section 8 Tested BW-A210-XXX (Heavy Duty) Operating Voltage: 28 Vdc Typ. Operating current: 100ma Operating Temp -40 to 50 Deg. C NVIS Compliant MIL-STD 3009 Weight: 2.9 oz Material: Anodized Black 6061-T6 Aluminium MIL-STD-810G MIL-STD 461F (CE102, RE102) IEC61000-4-2 Overvoltage, transient, and Reverse Protection IP67 rated

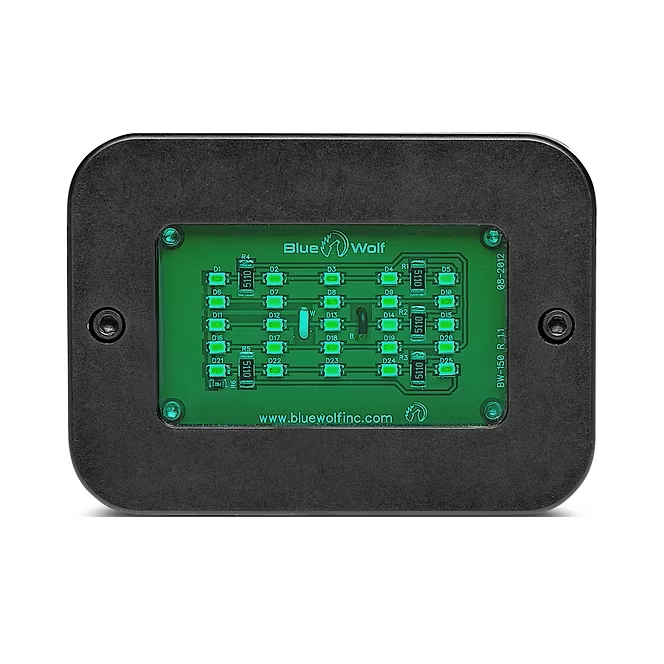

Rectangle Dome Light
Blue Wolf’s NVIS Rectangular Dome light is designed for illuminating instrumentation or large cargo bay lighting areas used in Night Vision Environments such as aircraft cockpits, tanks, boating vessels, or other applications. The Blue Wolf Dome light can be used to upgrade older incandescent Grimes B3550 Dome Light fixtures with NVIS compatible LED technology. The low profile design, matching screw mount locations and (optional) BA15 connector make upgrades as simple as changing a bulb. No wiring necessary. The NVIS LED white light produced allows for easy viewing without “greening out” important indication colours such as “reds” and “yellows”. Made out of a durable solid aluminium construction, this NVIS Rectangular Dome light can be installed almost anywhere. Easy installation for illuminating cargo or cabin areas. (Optional BW-152 mounting plate available) Optional BA15 connector Coast Guard NSN# 6220-01-HS2-7742 Quick data specs Operating Voltage: 28 Vdc Typ. Operating current: 120ma PWM Dimmable from 0 to 100% NVIS Compliant MIL-STD 3009 Mass: 3.4 oz. Material: Anodized Black 6061-T6 Aluminum DOD-160 section 8 Tested Adapted for retrofits – Grimes B3550

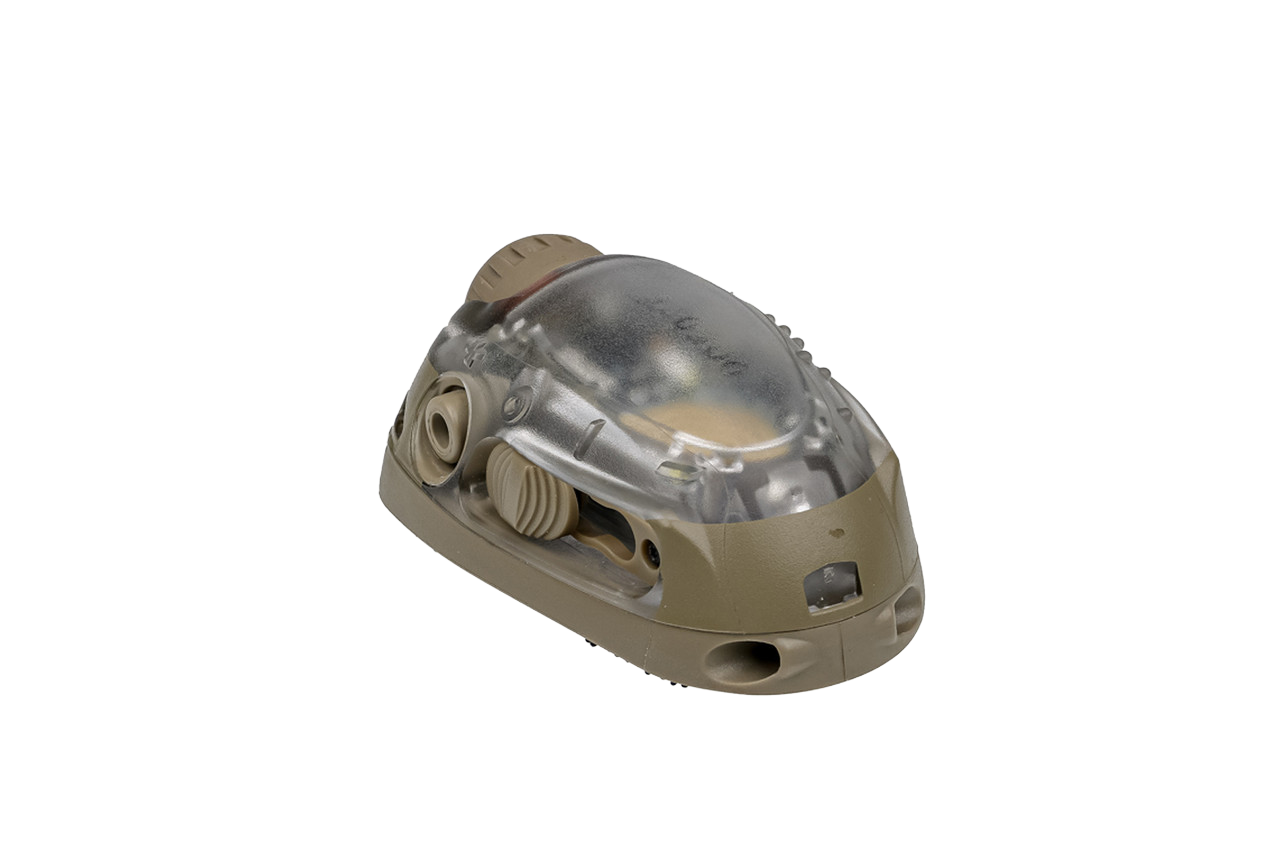

TRILOBYTE HELMET BEACON LIGHT GEN2
The Trilobyte from AdventureLights is the next generation of tactical helmet lights, built on the proven VIP Tactical signal light. Users are provided with customizable visual and near-infrared spectrums housed in a user-friendly, rugged, compact AA battery light that can withstand extreme environments. The Trilobite Gen 2 has 4 output colors: White, Green, Red, and IR. It has positive vibration feedback (MultiVibe™) for tactile switch position indication. This allows the user to see the functions in the dark with IR light, or when using on the helmet. When the helmet light is turned on, the first color is always IR to prevent detection by colored light. The housing is made of extremely robust and shatterproof polycarbonate. The Trilobite can be attached to hook and pile surfaces with the 3M hook and loop fastener attached to the bottom of the housing. Optionally, the Trilobyte can be attached with the modular Base Attachment mounting plate. Features Control Functions Left: Luminosity NIR (low, medium, high), color selection in visible mode (white, green, red). Control functions Right: Main functions (Contant light, Flash (48 BPM)), Off. Control functions Left when polarity is changed: Record, Playback. Control functions Right when polarity is changed: Constant light, IR detection mode* (sleep mode). Reverse Polarity Program Switching®: Separates groups of functions, by changing the polarity of the battery. MultiVibe™ Function: Vibrating feedback for each position (vibrates once for position 1, twice for position 2, etc.). Mockingbird® Technology: Allows users to record and playback their Own Flashing Signature with an external light source containing a NIR wavelength, including sunlight. *IR Detection Mode: helmet light vibrates 5 times and flashes white for 5 seconds when activated by a NIR wavelength.
